Peripheral trees

Peripheral trees#

The peripheral tree describes the component of the PCIe400 board, defining their connections to the external world (PCIe, FDTI, JTAG), their address on the bus (AVMM, I²C, SPI) and their references to the schematic (designator).

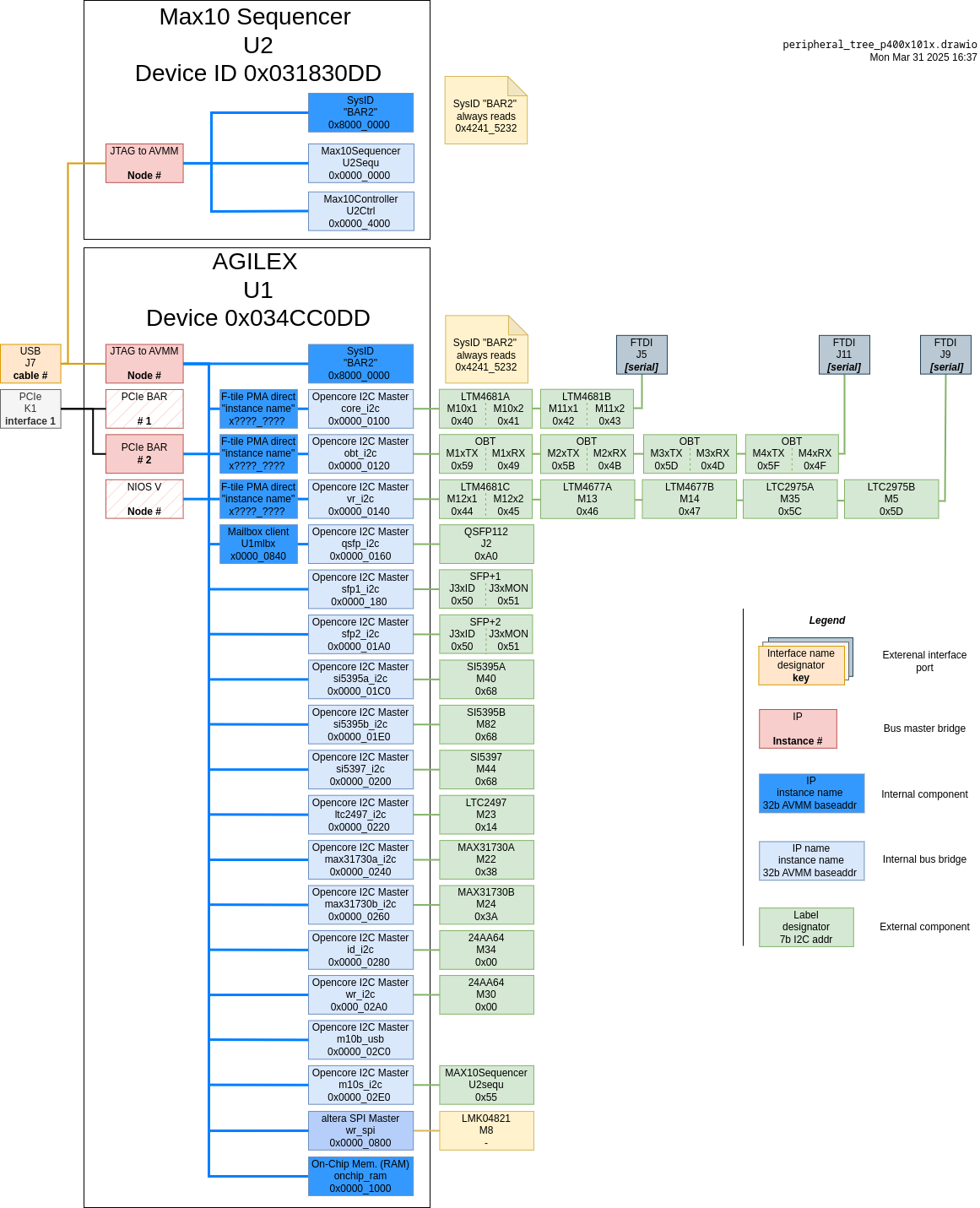

p400x101x peripheral tree — The peripheral tree of the PCIe400 bard `p400x101x`#
